Description

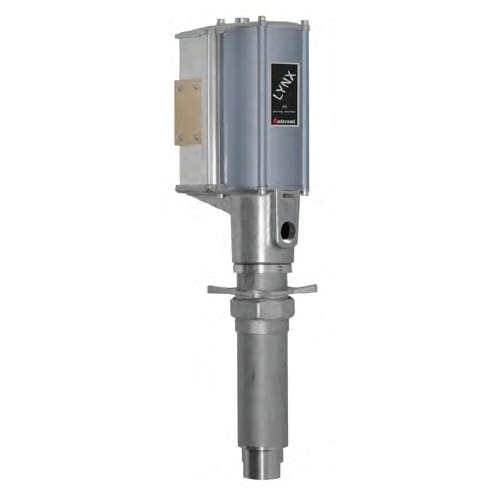

Piston Pumps | Lynx HD 5:1

Model#: 1110-012 – 5:1 3″ Bare Stub pump with Bung Adapter
Typical Applications: Automotive Dealerships, Mobile Lube, Quick Lubes, Tire Center, Transmission Centers
Fluid Types: Auto Transmission Fluid, Oil
The Lynx HD 5:1Suitable for distribution of all types of light and heavy viscosity oil through pipe, hose reels, and meters. High output allows simultaneous operation when used in multi-dispense point systems.
These pumps can be supplied separately or as complete systems with all the components necessary for installation.  These pumps may be mounted on drums, tanks, or walls, using the appropriate accessories.

Features:

• Pressure relief included
• Sintered brass muffler
• Fully adjustable metal bung adapter
• 3″ Air motor design
• Durable double acting piston pump
• Multiple dispense point capacity
• Excellent value/performance
• Proven design
