Description

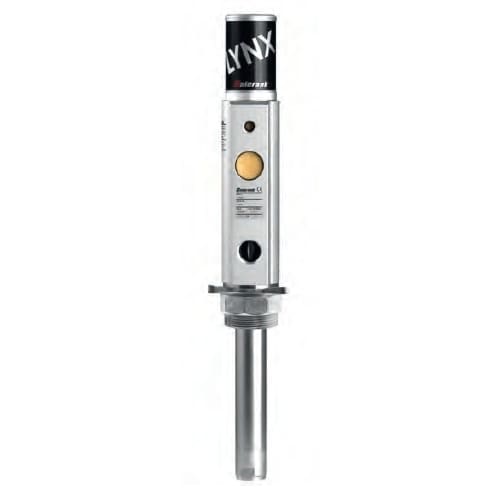

Piston Pumps | Lynx 3:1

Model#: 1110-007 – 3:1 Bare Stub pump with Bung Adapter
Typical Applications: Automotive Dealerships, Mobile Lube, Quick Lubes, Tire Center, Transmission Centers
Fluid Types: Auto Transmission Fluid, Oil
The Lynx 3:1 ratio double acting pump is engineered for outstanding performance and reliability to dispense lubricating oils and similar products up to SAE 90.

Features:

• Double acting pump – Pumps product on both the up and down stroke providing smooth and reliable flow and pressure.
• Patented air valve – designed to operate with low air consumption and moist air.
• Air valve design has fewer components – for reliable operation; easy and economical maintenance.
• Factory lubricated air motor – no need for air lubricator.
• Built in sintered brass air filter – assures clean and quiet operation.
• Anodized aluminum air piston – corrosion resistant, less sensitive to moisture in air system.
• Height adjustable 2” bung adapter – to fit all types of drums, drum covers, tanks, etc.
• Pump inlet easily accepts a variety of extensions – to fit all types and sizes of tanks and containers.
