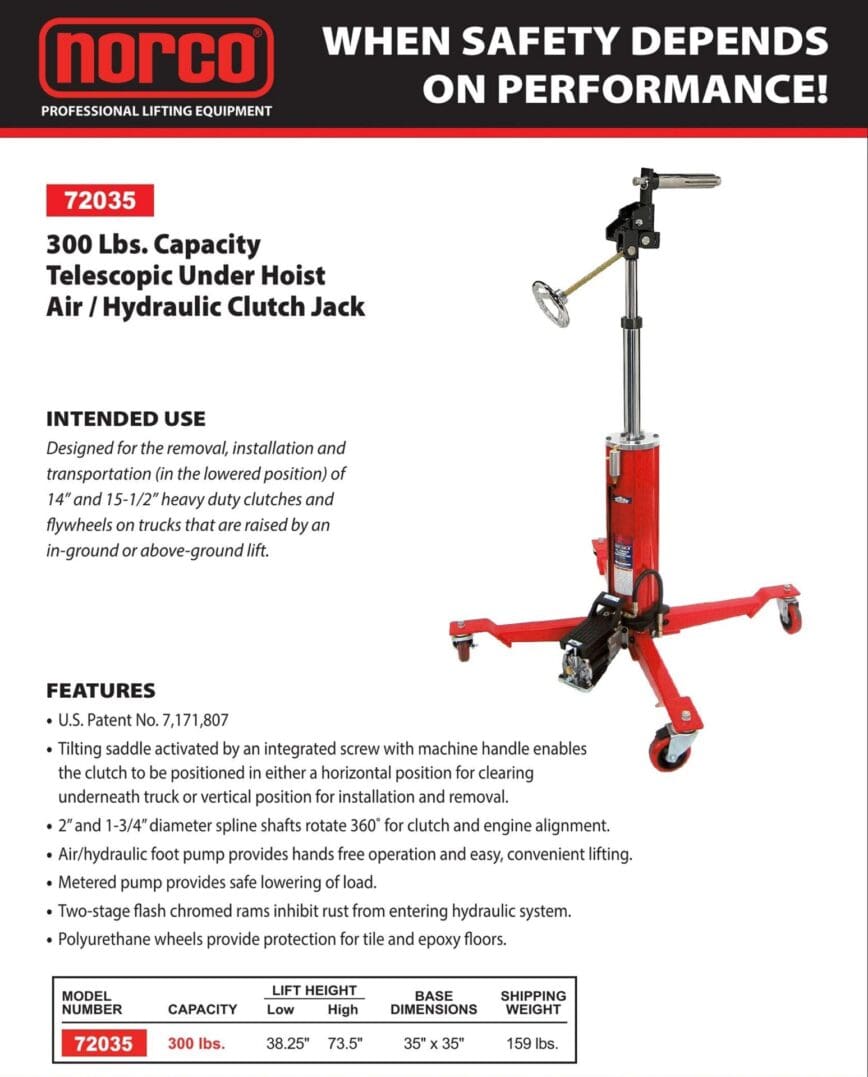

Clutch Jack, 300 lb. Capacity, Underhoist (Norco: model 72035)
$2,621.33
Description
72035
300 Lbs. Capacity
Telescopic Under Hoist
Air / Hydraulic Clutch Jack
INTENDED USE:
Designed for the removal, installation and transportation (in the lowered position) of
14” and 15-1/2” heavy duty clutches and flywheels on trucks that are raised by an
in-ground or above-ground lift.
FEATURES:
- U.S. Patent No. 7,171,807
- Tilting saddle activated by an integrated screw with machine handle enables the clutch to be positioned in either a horizontal position for clearing underneath truck or vertical position for installation and removal.
- 2” and 1-3/4” diameter spline shafts rotate 360˚ for clutch and engine alignment.
- Air/hydraulic foot pump provides hands free operation and easy, convenient lifting.
- Metered pump provides safe lowering of load.
- Two-stage flash chromed rams inhibit rust from entering hydraulic system.
- Polyurethane wheels provide protection for tile and epoxy floors.
- U.S. PATENT NO. 7,171,807
DIMENSIONS:
| Low Lift Height | 38.25″ |
| High Lift Height | 73.5″ |
| Base Dimensions | 35 x 35″ |
| Shipping Weight | 159 lbs. |
