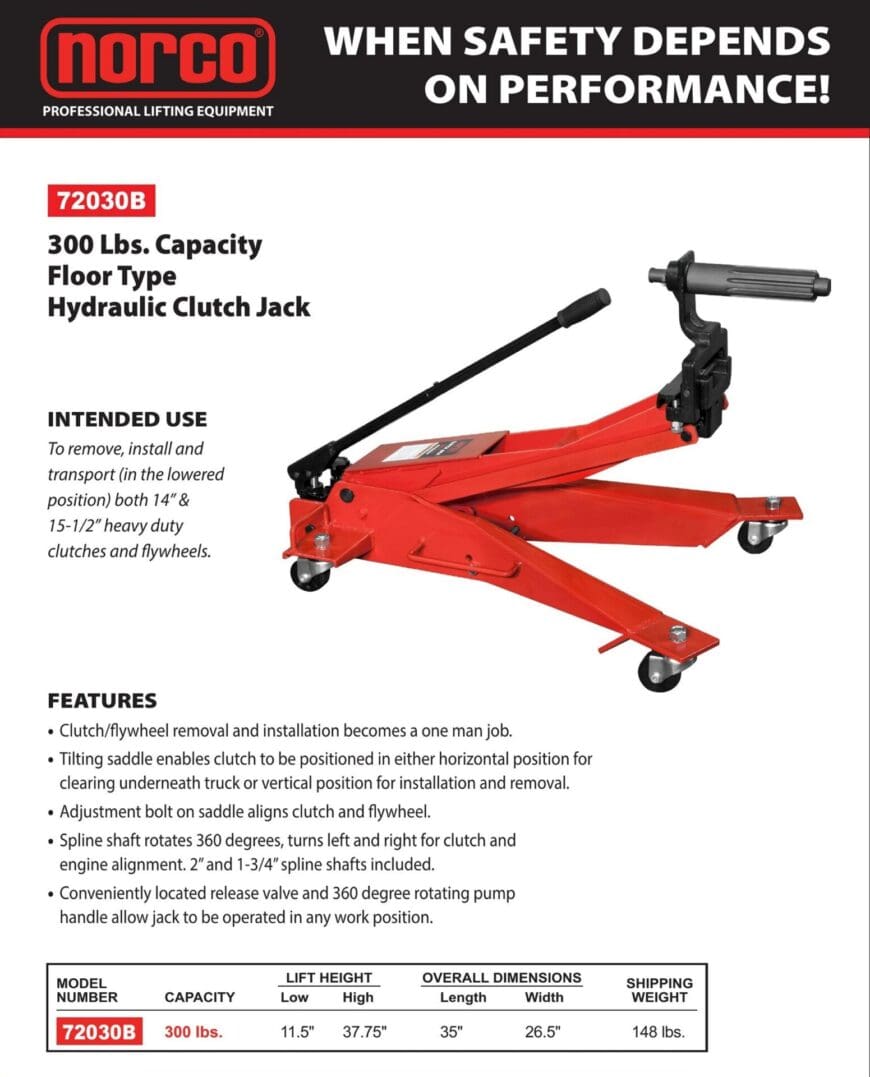

Clutch Jack, 300 lb. Capacity (Norco: model 72030B)
$998.67
Description
72030B
300 Lbs. Capacity
Floor Type Hydraulic Clutch Jack
INTENDED USE:
To remove, install and transport (in the lowered position) both 14” & 15-1/2” heavy duty clutches and flywheels.
FEATURES:
- Clutch/flywheel removal and installation becomes a one man job.
- Tilting saddle enables clutch to be positioned in either horizontal position for clearing underneath truck or vertical position for installation and removal.
- Adjustment bolt on saddle aligns clutch and flywheel.
- Spline shaft rotates 360 degrees, turns left and right for clutch and engine alignment. 2” and 1-3/4” spline shafts included.
- Conveniently located release valve and 360 degree rotating pump handle allow jack to be operated in any work position.
DIMENSIONS:
| Low Lift Height | 11.5″ |
| High Lift Height | 37.75″ |
| Length | 35″ |
| Width | 26.5″ |
| Shipping Weight | 148 lbs. |
