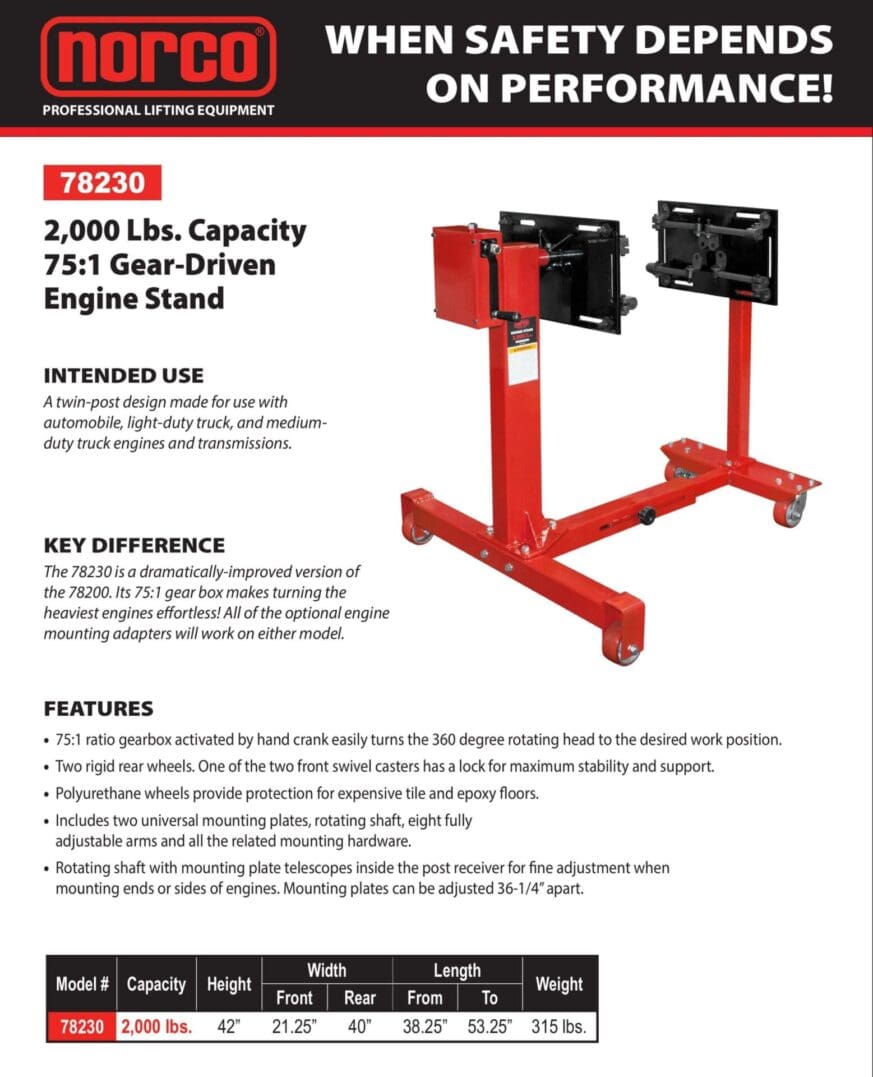

Engine Stand, 2,000 lb. Capacity, Gear Driven (Norco: model 78230)
Engine Stand, 2,000 lb. Capacity, Gear Driven (Norco: model 78230) - Image 2
Engine Stand, 2,000 lb. Capacity, Gear Driven (Norco: model 78230) - Image 3
Engine Stand, 2,000 lb. Capacity, Gear Driven (Norco: model 78230) - Image 4

Engine Stand, 2,000 lb. Capacity, Gear Driven (Norco: model 78230)

$1,980.00

SKU: 78230 Category: Tags: , Brand:

Description

78230

2,000 Lbs. Capacity
75:1 Gear-Driven Engine Stand

INTENDED USE:

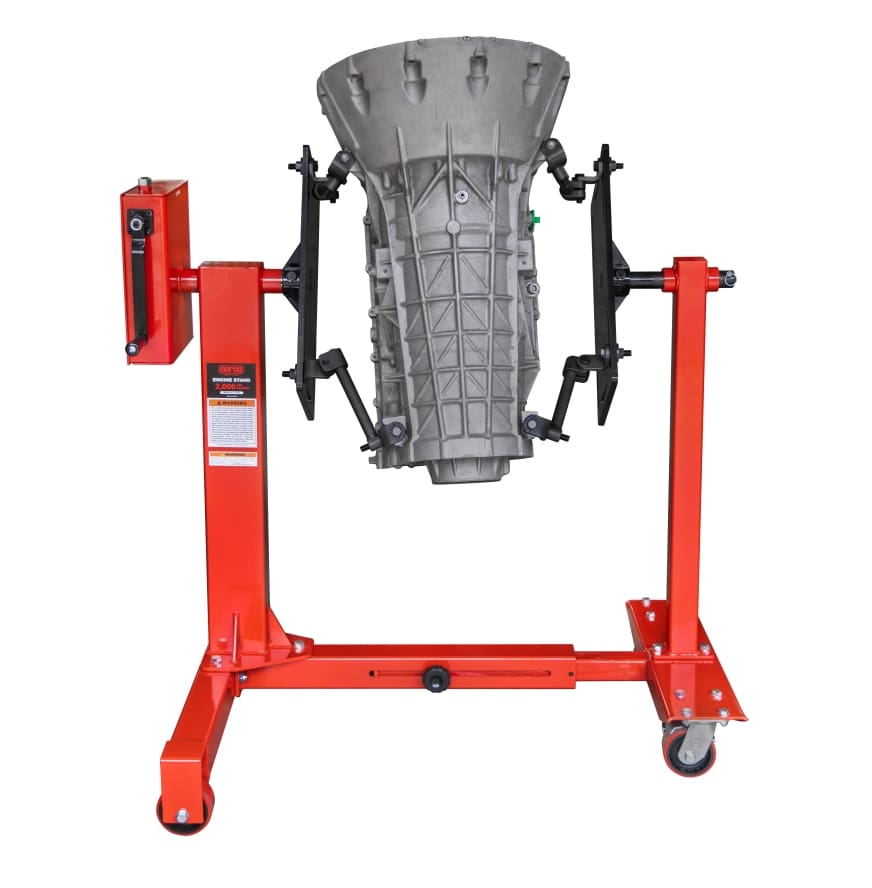

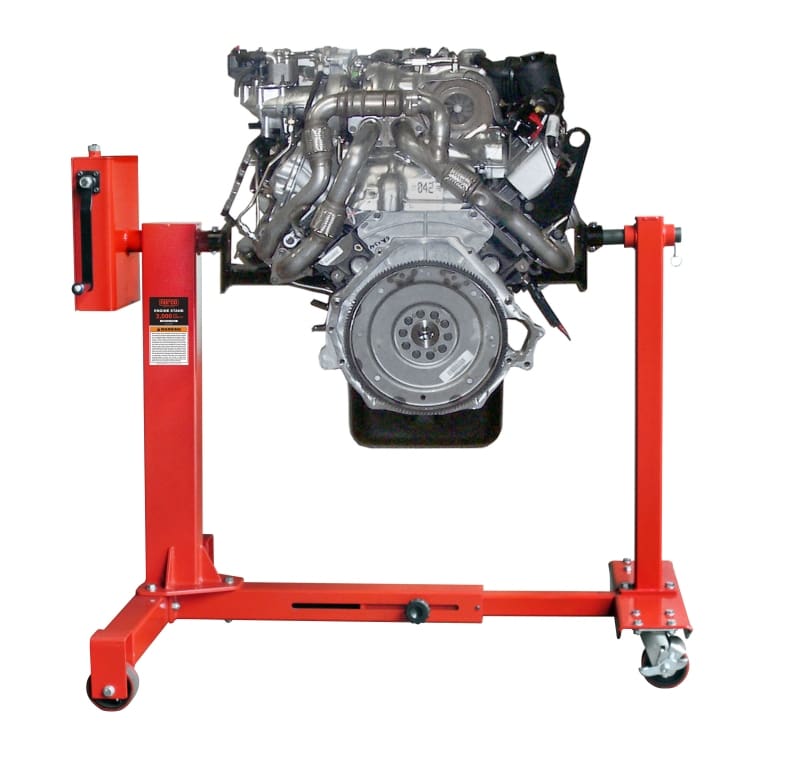

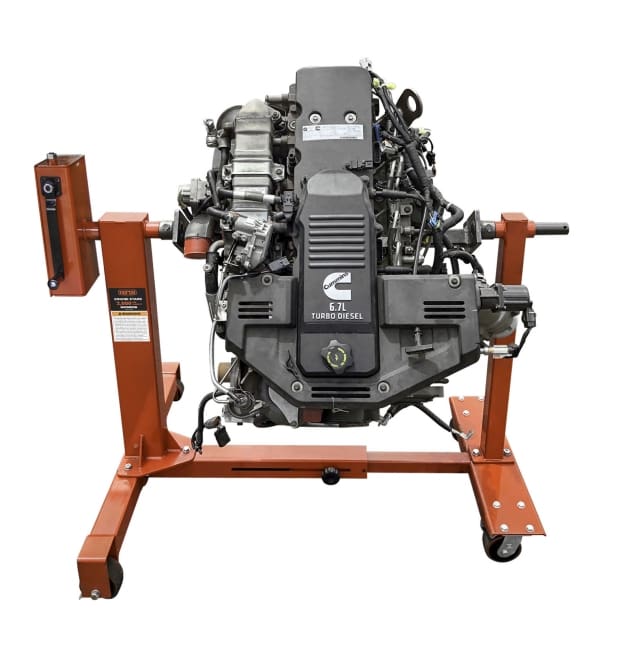

A twin-post design made for use with automobile, light-duty truck, and medium-duty truck engines and transmissions.

KEY DIFFERENCE:

The 78230 is a dramatically-improved version of the 78200. Its 75:1 gear box makes turning the heaviest engines effortless! All of the optional engine mounting adapters will work on either model.

FEATURES:

    • 75:1 ratio gearbox activated by hand crank easily turns the 360 degree rotating head to the desired work position.
    • Meets the ASME PASE performance and safety standards.
    • Two rigid rear wheels. One of the two front swivel casters has a lock for maximum stability and support.
    • Polyurethane wheels provide protection for expensive tile and epoxy floors.
    • Includes two universal mounting plates, rotating shaft, eight fully adjustable arms and all the related mounting hardware.
    • Rotating shaft with mounting plate telescopes inside the post receiver for fine adjustment when mounting ends or sides of engines. Mounting plates can be adjusted 36-1/4” apart.

DIMENSIONS:

Height 42″
Width
  Front 21.25″
  Rear 40″
Length
  From 38.25″
  To 53.25″
Shipping Weight 315 lbs.
