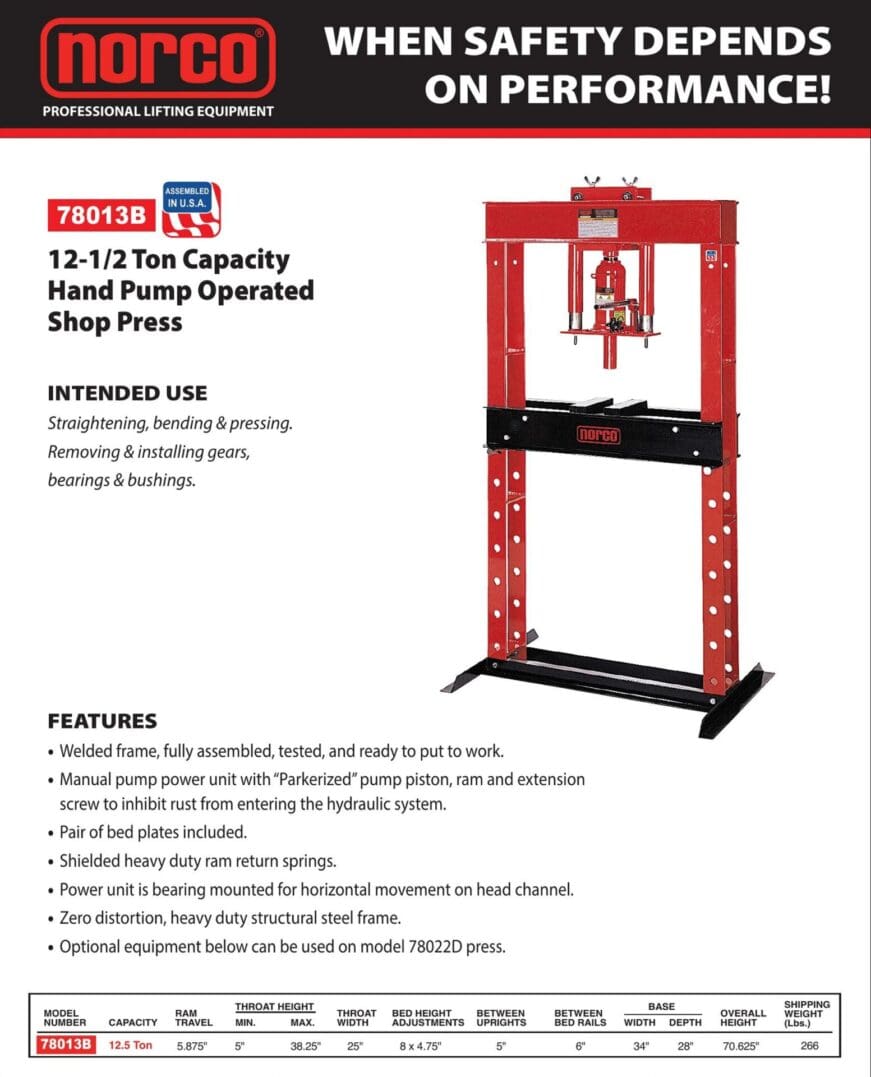

Shop Press, 12-1/2 Ton, Hand Pump (Norco: model 78013B)
$1,624.00
Description
78013B
12-1/2 Ton Capacity
Hand Pump Operated
Shop Press
INTENDED USE:
Straightening, bending & pressing.
Removing & installing gears,
bearings & bushings.
FEATURES:
- Welded frame, fully assembled, tested, and ready to put to work.
- Manual pump power unit with “Parkerized” pump piston, ram and extension screw to inhibit rust from entering the hydraulic system.
- Pair of bed plates included.
- Shielded heavy duty ram return springs.
- Power unit is bearing mounted for horizontal movement on head channel.
- Zero distortion, heavy duty structural steel frame.
- Optional equipment below can be used on model 78022D press.
DIMENSIONS:
| Ram Travel | 5.875″ |
| Min. Throat Height | 5″ |
| Max. Throat Height | 38.25″ |
| Throat Width | 25″ |
| Bed Height Adj. | 8 x 4.75″ |
| Between Uprights | 5″ |
| Between Bed Rails | 6″ |
| Base Width | 34″ |
| Base Depth | 28″ |
| Overall Height | 70.625″ |
| Shipping Weight | 266 lbs. |
