Shop Press, 50 Ton, Air/Hydraulic, 13-1/4" Stroke (Norco: model 78077)

Shop Press, 50 Ton, Air/Hydraulic, 13-1/4″ Stroke (Norco: model 78077)

$8,386.67

SKU: 78077 Category: Tags: , Brand:

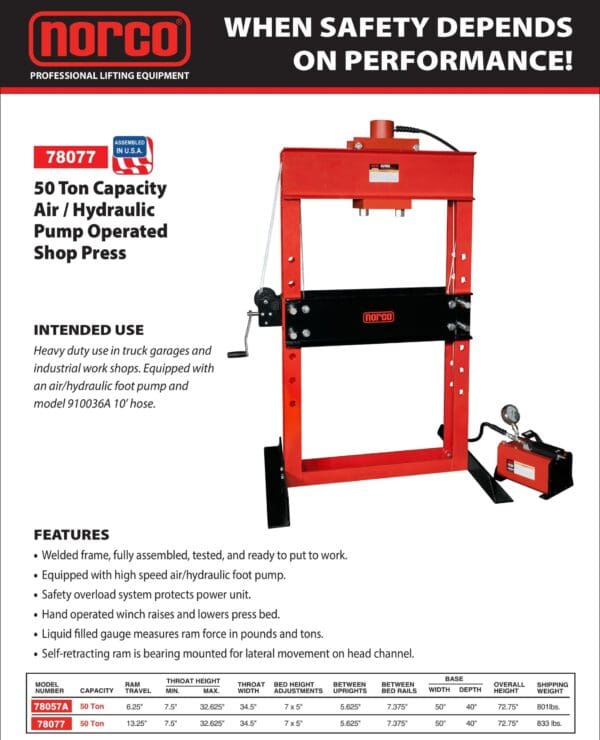

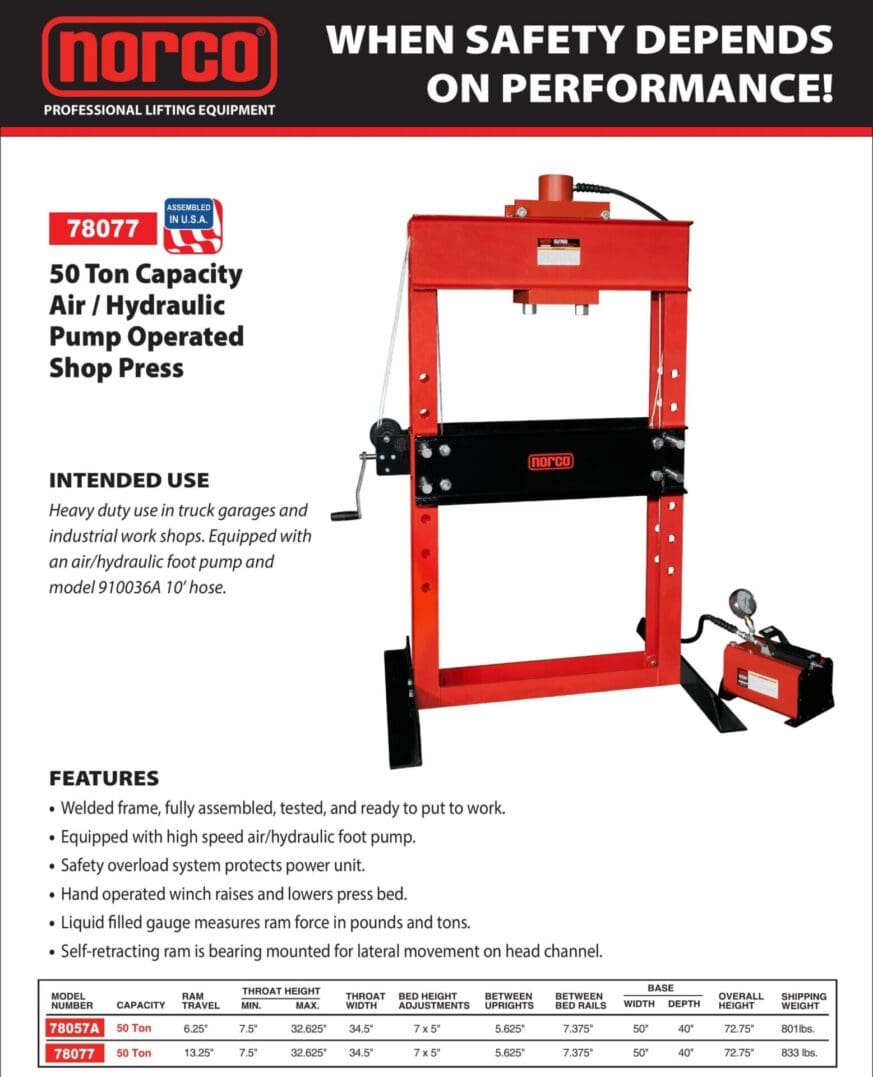

Description

78077

50 Ton Capacity
Air / Hydraulic Pump Operated
Shop Press w/ 13 1/4″ Stroke

Made in USA

INTENDED USE:

Heavy duty use in truck garages and industrial work shops. Equipped with
an air/hydraulic foot pump and model 910036A 10’ hose.

FEATURES:

  • Welded frame, fully assembled, tested, and ready to put to work.
  • Equipped with high speed 910140 air/hydraulic foot pump.
  • Safety overload system protects power unit.
  • Hand operated winch raises and lowers press bed.
  • Liquid filled gauge measures ram force in pounds and tons.
  • Self-retracting ram is bearing mounted for lateral movement on head channel.

DIMENSIONS:

Ram Travel 13.25″
Min. Throat Height 7.5″
Max. Throat Height 32.625″
Throat Width 34.5″
Bed Height Adj. 7 x 5″
Between Uprights 5.625″
Between Bed Rails 7.375″
Base Width 50″
Base Depth 40″
Overall Height 72.75″
Shipping Weight 801 lbs.
